Demag D 210 - 730 NC III
| Details |
| Manufacturer: | Demag |
| Type of machine: | D 210 - 730 NC III |
| Year: | 1987 |
| Delivery time: | now |
| Terms of Delivery: | EX - Works |
| Location: | Awans - Belgium |
| Controlversion: | NC IV |
| Screen text: | German |
| Operating hours: | hrs. |
| Price: | on request |
Technical details
| Clamping unit | |
|---|---|
| Clamping force: | 2.100 kN |
| Size of mould platens (h x v): | 860 mm x 860 mm |
| Distance between tie bars (h x v): | 550 mm x 550 mm |
| Mould opening stroke: | 550 mm |
| Mould height min./ max: | 310 / 710 mm |
| Max daylight: | 1.260 mm |
| Hydraulic ejector - stroke: | 160 mm |
| Ejector force forward/backward: | 45 / 25 kN |
| Injection unit | |
|---|---|
| Screw diameter: | 52 mm |
| L / D | 19,7 |
| Injection pressure: | 1810 bar |
| Screw Stroke | 190 mm |
| Stroke volume: | 400 ccm |
| Shot weight, PS: | 355 g |
| Injection rate: | 200 ccm/s |
| Screw speed: | 1/min |
| Plasticising rate max.: | g/s |
| Nozzle pressure: | 60 kN |
| Electric and Hydraulic Equipment | |
|---|---|
| Nominal capacity of pump motor: | kW |
| Installed heating capacity: | 16 kW |
| Dry cycle number: | 1540 1/h |
| Reservoir capacity: | 580 ltr. |
| Dimensions und weights | |
|---|---|
| Dimensions of the machine ca.: | |
| 6800 x 1650 x 1900 mm | |
| weight: | 9930 kg |
| Accessories |
|---|
| Wedge type anti-vibration pads |
| Additional information | |
|---|---|
| - 2 x Cores - - |
|

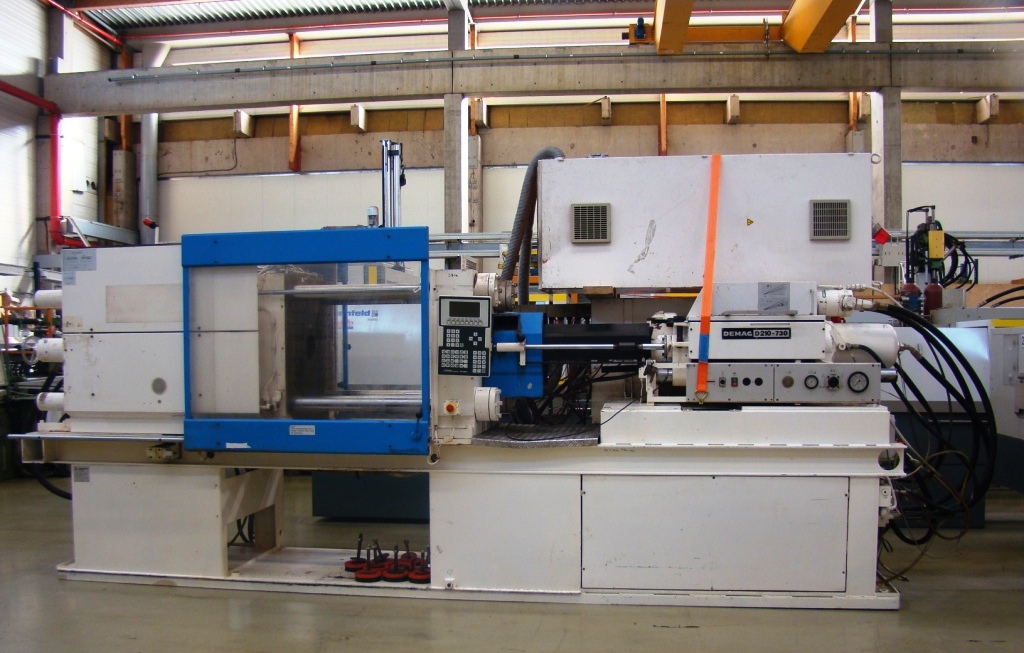

| Picture |
|---|
